Dredging Equipment: A Technical Overview of Dredger Types and Applications

Dredging Equipment: A Technical Overview of Dredger Types and Applications

Dredging equipment forms the backbone of marine construction, port maintenance, and land reclamation projects worldwide. This article provides a factual introduction to the main categories of dredgers, their technical characteristics, and typical applications, based on the product portfolio of Zhenjiang Yanyang Engineering Co., Ltd., established in 1996.

What Is Dredging Equipment?

Dredging equipment refers to specialized vessels designed to excavate and remove sediment, rock, or debris from the bottom of water bodies. They are essential for creating and maintaining navigable channels, deepening ports, reclaiming land, and installing foundations for offshore structures. The choice of dredger depends on material type, depth, project scale, and environmental conditions.

Problem: Choosing the Right Dredger for Your Project

Procurement professionals and project managers face a complex decision when selecting dredging equipment. Each dredger type—whether suction, mechanical, or barge—offers distinct capabilities. Without a clear understanding of these differences, projects risk delays, cost overruns, or suboptimal performance.

Industry Background

Zhenjiang Yanyang Engineering Co., Ltd., operating under the brand Yanyang Marine, has been designing and manufacturing dredgers, barges, and offshore vessels for port and offshore projects for over three decades. The company's export business accounts for 100% of total sales, serving markets including the United Arab Emirates, Indonesia, India, Egypt, Turkey, Nigeria, South Africa, Tanzania, Saudi Arabia, and Oman. With approximately 50 employees and a dedicated R&D team of ten engineers, Yanyang Marine focuses on delivering reliable, cost-effective solutions.

Detailed Solution: Yanyang Marine's Dredging Equipment Range

Yanyang Marine offers a complete line of dredging vessels, each engineered for specific operational demands:

• Cutter Suction Dredger (CSD) – Model 1000-8000m³/h, self-propelled, super size 8000m³/h capable. Suitable for hard soil, clay, and rock. Typical dimensions: LOA 121 m, width 25 m, depth 8.5 m. Ideal for port deepening, channel excavation, and reclamation.

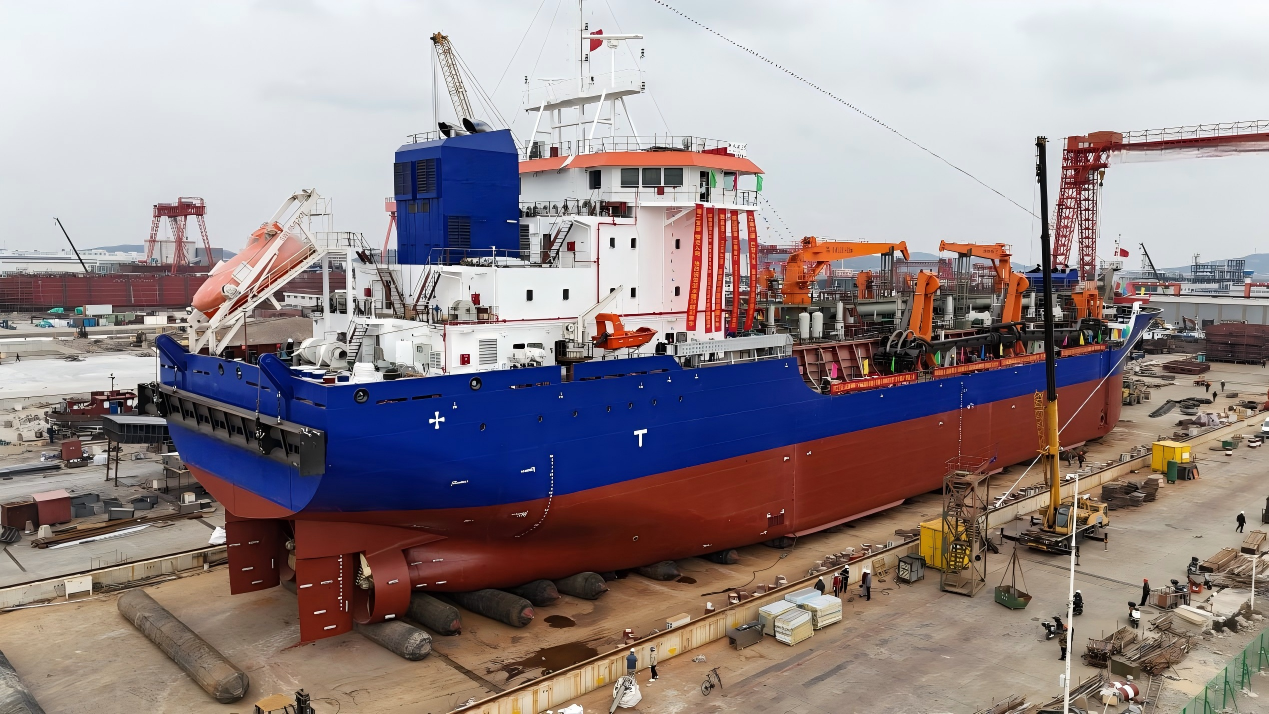

• Trailing Suction Hopper Dredger (TSHD) – Model TSHD, up to 26800m³ hopper capacity. Designed for deep-water channels, port expansion, and large-scale reclamation. Features CCS class, DP-1, and total installed power of 27726 kW.
• Backhoe Dredger – EX5500 self-propelled model. Overall length 71.5 m, beam 22 m, draft 2.5 m. Excavator Hitachi EX5500 with 2x1076 kW power. Dredging depth up to 32 m. Sufficient for long-term offshore operations.
• Grab Dredger – Self-propelled, 25m³ grab capacity. Steel construction, 58 m LOA, 22.6 m beam. Effective for hard clay and soft sediment in near-shore operations.
• Split Hopper Barge – Model 2600m³ (CCS class), part of the 1200-3200m³ range. Used for transporting dredged material. Ice class B, main engine power 3740 kW x 2.
• Pile Driving Barge (Piling Barge) – 110m pile leader height. Vessel for pile driving operations in port and bridge construction. Can handle piles up to 4000 mm diameter and 400 t weight.

Step-by-Step Equipment Selection Process

1. Define Project Scope: Determine whether the work is channel dredging, port construction, reclamation, or offshore wind foundation installation.
2. Assess Material: Identify soil type—sand, clay, rock, or debris—and whether cutter heads, grab buckets, or backhoe attachments are needed.
3. Evaluate Depth & Distance: For suction dredgers, consider dredging depth and discharge distance. Yanyang's CSD offers 30 m depth and 8000 m discharge; TSHD can reach 115 m depth.
4. Check Classification Requirements: Many projects require IACS class certificates. Yanyang Marine delivers vessels classed by CCS, BV, LR, DNV, or others upon request.
5. Consider Mobility & Self-Propulsion: Self-propelled vessels (e.g., CSD, TSHD, backhoe) reduce towing costs and improve maneuverability.
6. Budget and Lead Time: Standard vessels ship in 2–3 months; custom builds take 8–12 months. Yanyang offers roughly 50% lower cost compared to European manufacturers.

Use Cases

• Port Construction & Channel Dredging: TSHD and CSD suit deep-water berths and navigation channels. Yanyang's 26800m³ TSHD is built for large-scale projects.
• Offshore Wind & Bridge Foundations: Pile Driving Barges with leader heights up to 110 m handle heavy piles for wind turbine and bridge construction.
• Land Reclamation: CSD can pump dredged material over long distances (up to 8000 m) using self-propelled units.
• River Desilting & Maintenance: Grab dredgers and split hopper barges are effective for moderate-scale sediment removal in inland waterways.

Comparison of Dredger Types

All data sourced from Yanyang Marine’s product specifications as published.

Frequently Asked Questions

Conclusion

Selecting the right dredging equipment directly impacts project efficiency and budget. Yanyang Marine (Zhenjiang Yanyang Engineering Co., Ltd.) provides a full spectrum of dredgers—from cutter suction and trailing suction to backhoe, grab, barges, and pile driving vessels—backed by decades of experience, IACS classification options, and a strong global service network. For project-specific inquiries or to request a quotation, contact Yanyang Marine directly.
